Coolladen 11kW / 22kW Commercial & Home EV Wallbox Charging Station Type 2 – OCPP 1.6J Compliant with Smart App & RFID Access
Upgrade your EV charging infrastructure with the Coolladen 11kW / 22kW Fixed EV Wallbox Charging Station. Purpose-built for permanent installation in residential garages, apartment complexes, and commercial parking sites, this wallbox delivers robust 3-phase high-speed charging. With full OCPP 1.6J compliance, multi-network connectivity (WiFi, Ethernet, 4G), and secure access controls, it offers a future-proof charging solution for all European Type 2 electric vehicles.
🌟 Key Features & Commercial Highlights
-
Fixed Wall-Mounted Installation: Designed for permanent, secure mounting on garage walls or dedicated mounting poles, delivering reliable, heavy-duty 3-phase charging up to 22kW.
-

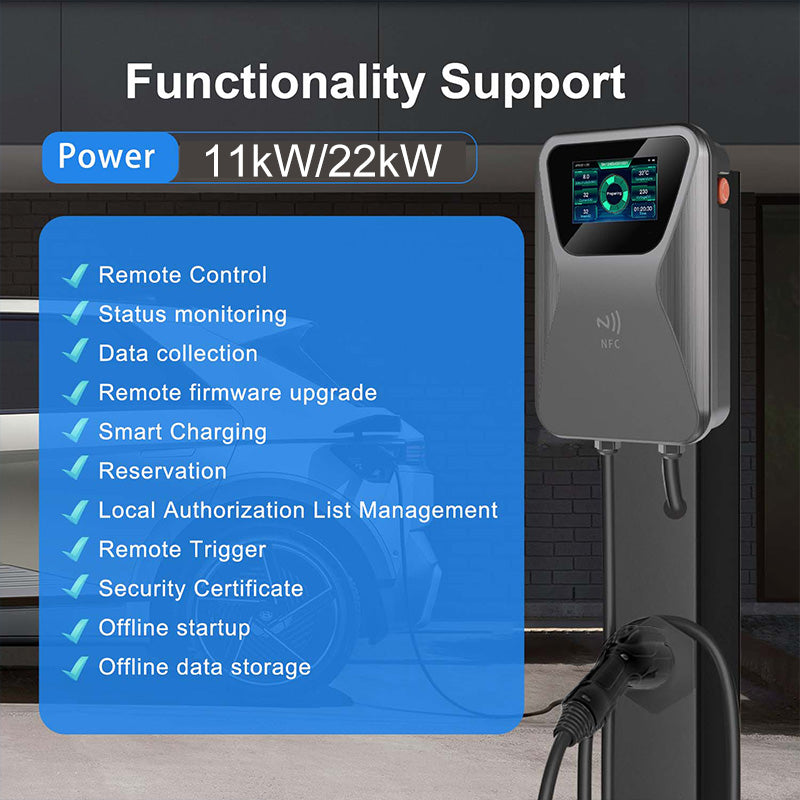

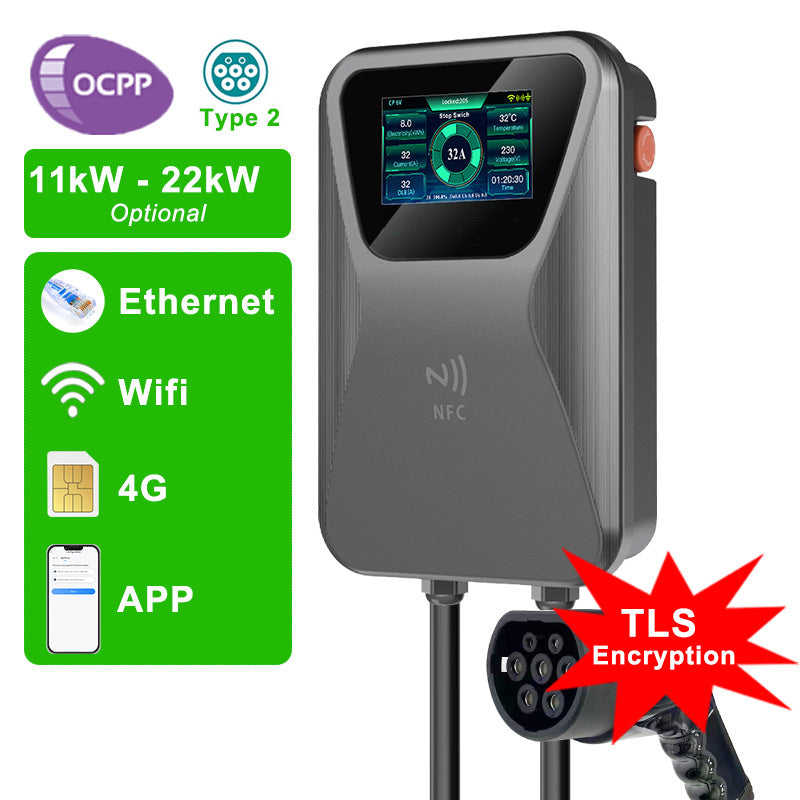

OCPP 1.6J & Backend Management: Seamlessly connects to any third-party OCPP management platform via WiFi, Ethernet (RJ45), or 4G. Perfect for automated billing, load balancing, and fleet operations.
-

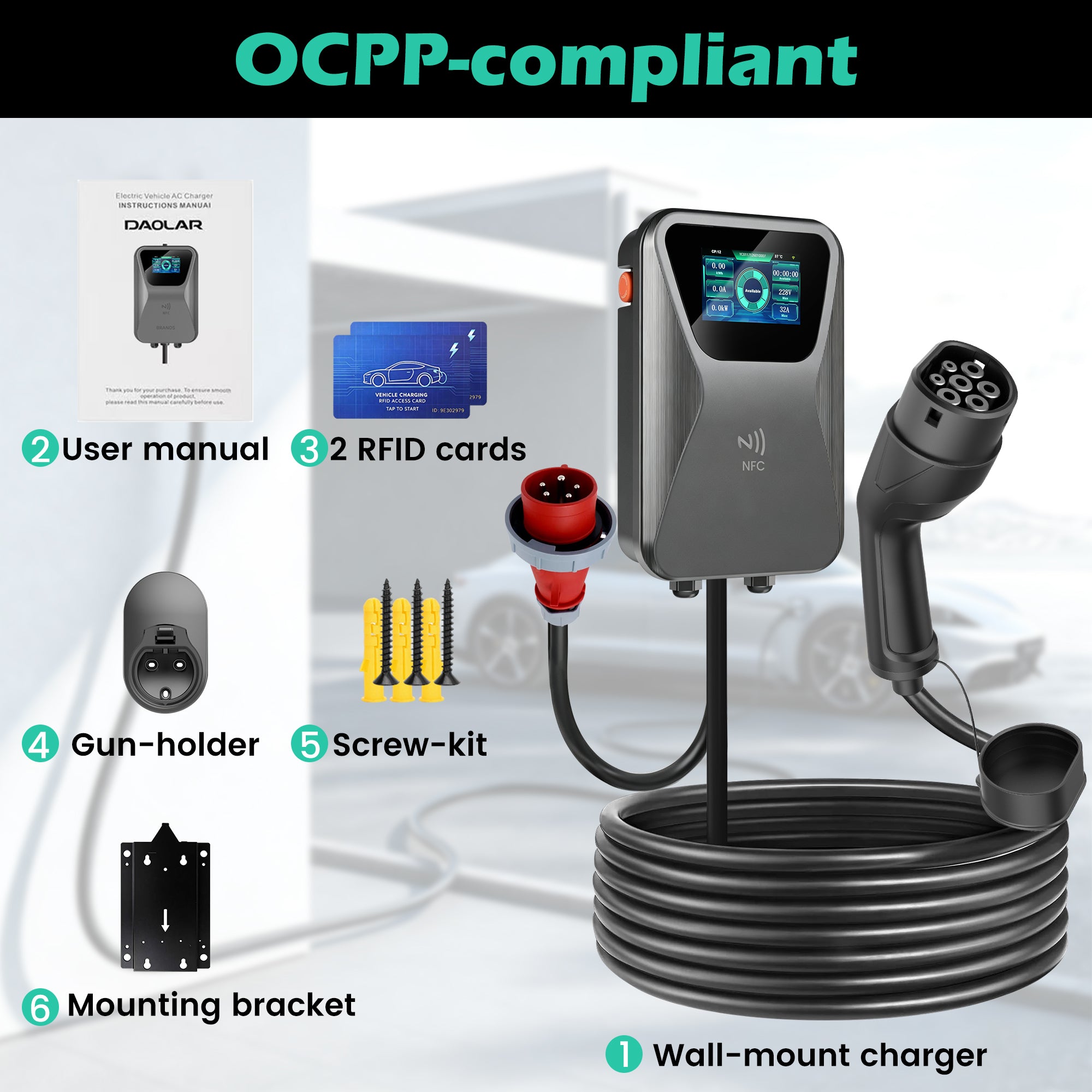

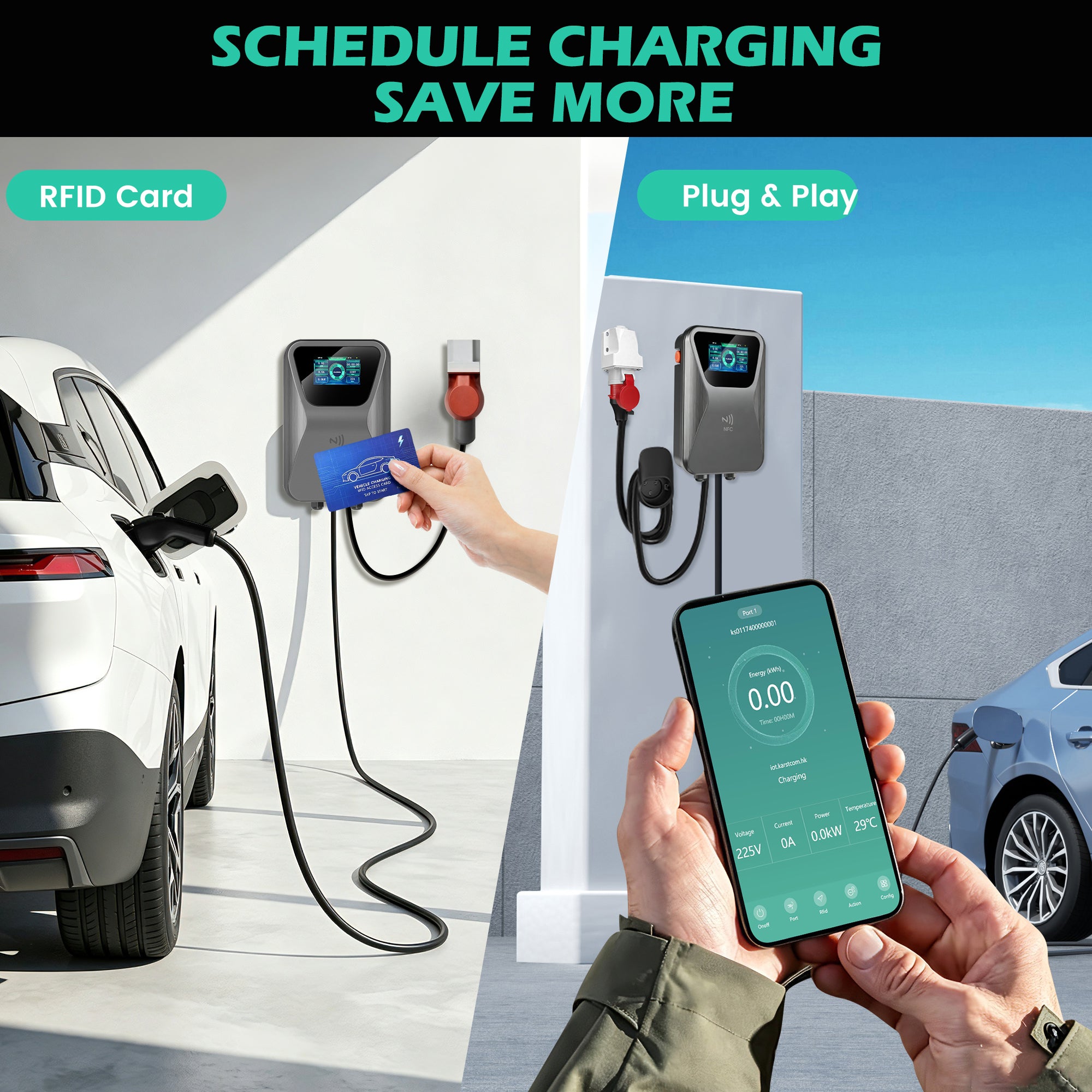

Dual Access Protection (RFID & Smart App): Prevent unauthorized charging in shared garages or public spaces. Authorize users instantly using included RFID cards or remotely through the smartphone app.
-
Smart Scheduling & Cost Efficiency: Schedule charging sessions during off-peak energy hours via the mobile app to significantly lower electricity bills.
-

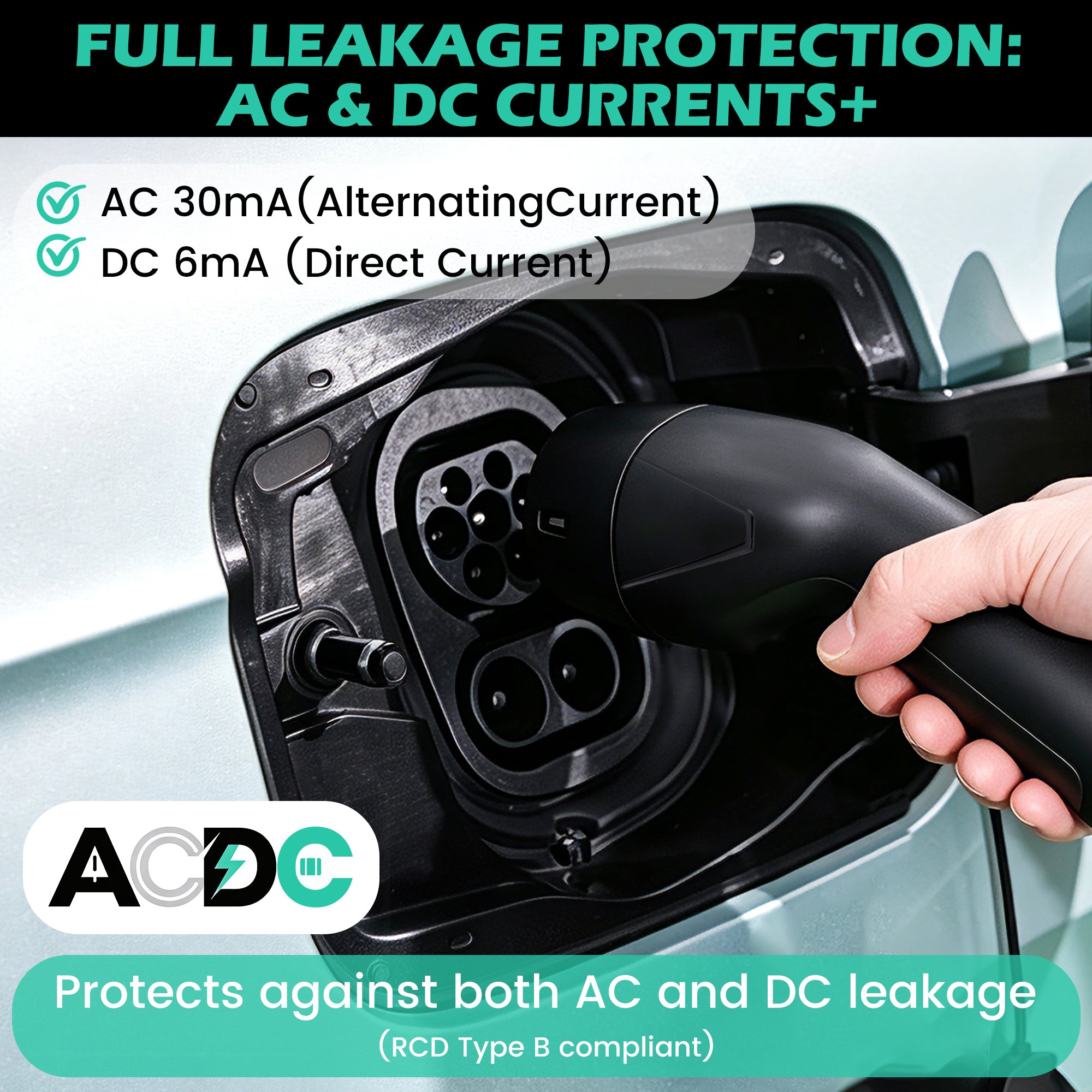

Comprehensive Type B Leakage Protection: Integrated Type B RCD (AC 30mA + DC 6mA) detects both AC and smooth DC residual currents, adhering to strict European safety standards.
-

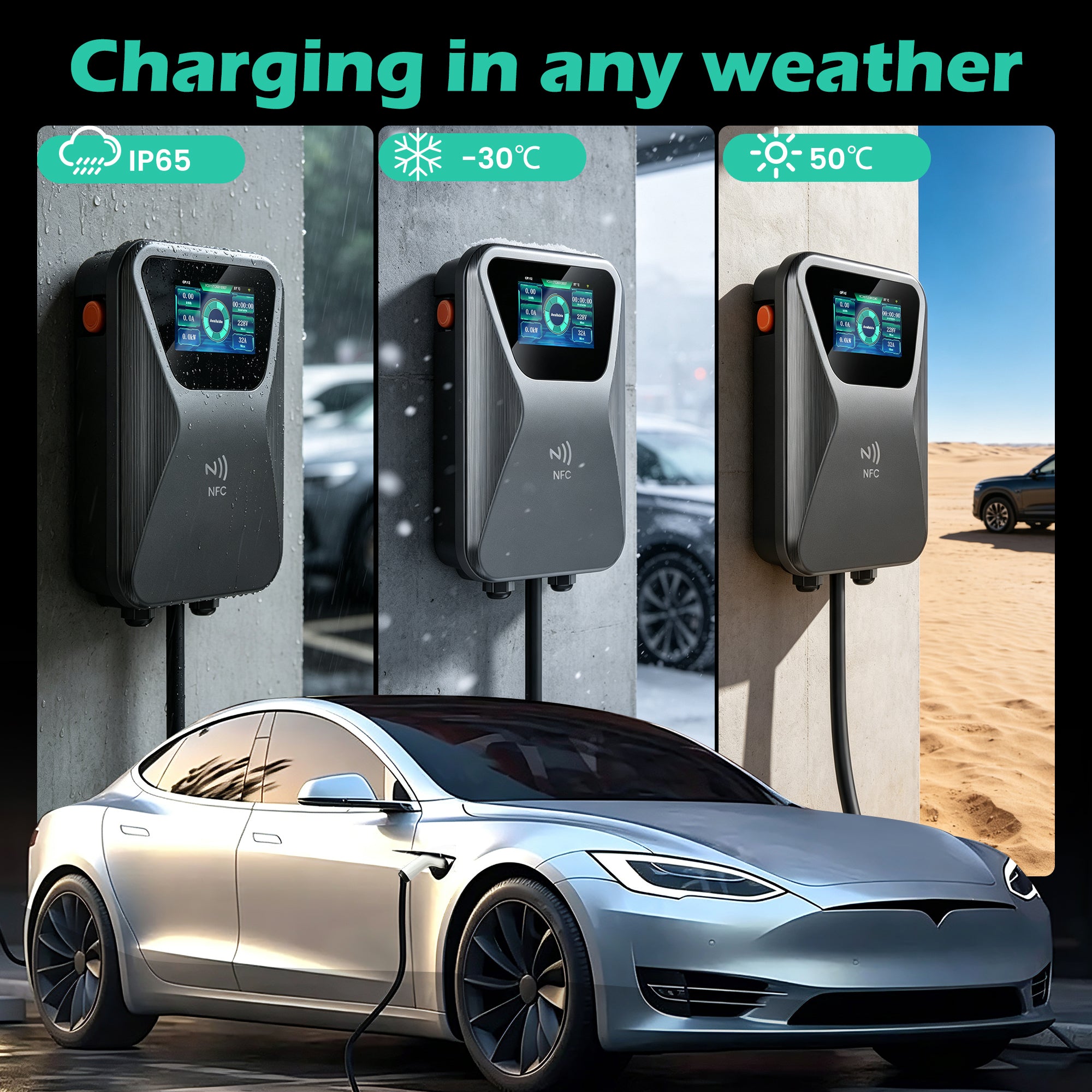

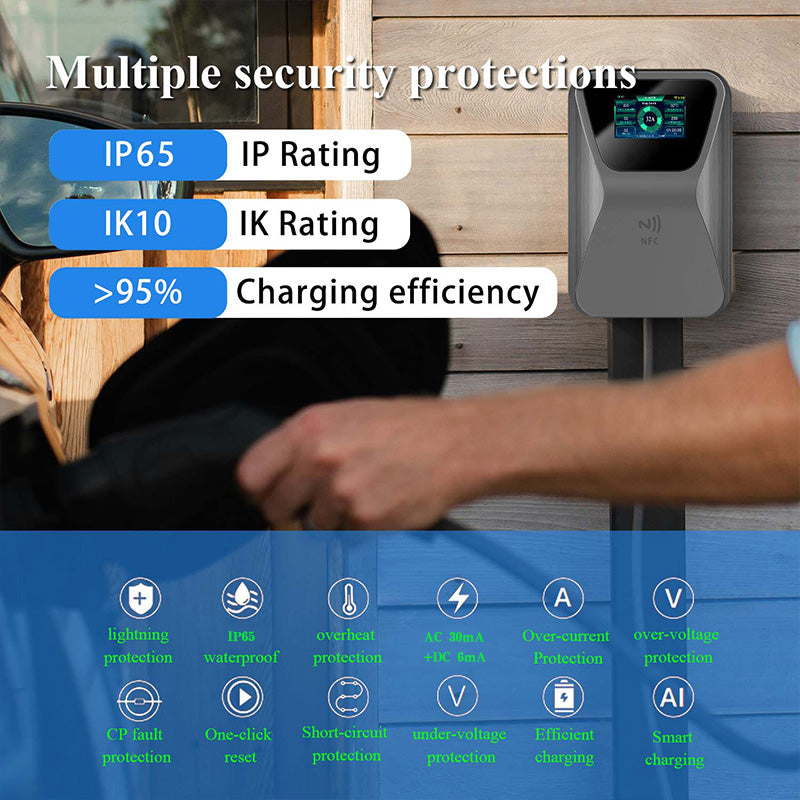

All-Weather IP65 & IK10 Enclosure: Rugged, weatherproof housing (IP65) with high impact resistance (IK10), ensuring safe indoor and outdoor operation from -30°C to +50°C.
📐 Technical Specifications
| Feature | Specification |
| Max Output Power | 11 kW (16A 3-Phase) / 22 kW (32A 3-Phase) |
| Installation Type | Fixed Wall-Mount / Pole-Mount |
| Connector Type | Type 2 (IEC 62196-2 EU Standard) |
| Open Protocol | OCPP 1.6J (TLS Security Encryption) |
| Connectivity | WiFi (2.4GHz) / Ethernet (RJ45) / 4G Cellular |
| Authorization | RFID Card / Mobile App / Plug & Charge |
| Safety Protection | Type B RCD (AC 30mA + DC 6mA) |
| Enclosure Rating | IP65 Waterproof & Dustproof / IK10 Impact Proof |
| Working Temperature | -30°C to +50°C |
| Certifications | CE, RoHS Compliant |
Q: Will it fit my car?
A: It is compatible with any car brand as long as the charging port (Type 1 or Type 2) matches. To ensure optimal performance, please choose a charger that best matches your car’s maximum supported power and voltage.
Q: Does the EV charging cable require installation?
A: No tools or setup needed—it’s plug-and-play! Simply connect the power plug to an outlet and the other end to your car to start charging.
Q: Is it suitable for use in Europe?
A: The product is CE and RoHS certified, and the cable is TUV certified, meaning it meets safety standards and is approved for use in European countries.
Q: What kind of warranty do I get?
A: The product comes with a 2-year warranty, a 15-day return policy, and lifetime free technical support.
